Deleks DK-1200 Wood Chipper, PTO-Driven

Deleks DK-1200 Wood Chipper, PTO-Driven

Regular price £0.00 ex VAT / £0.00 inc VAT
Regular price Sale price £0.00
Sale Sold out

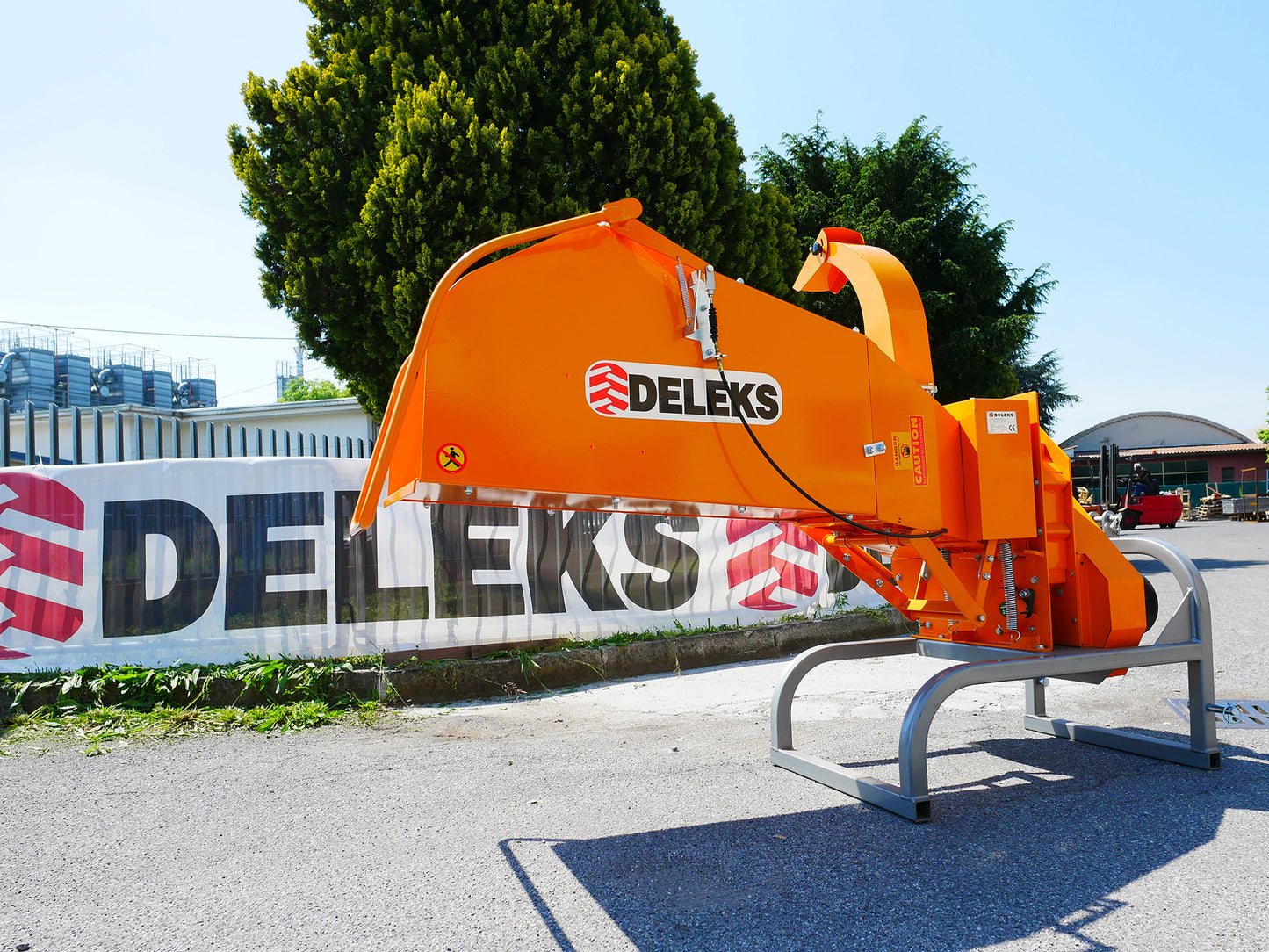

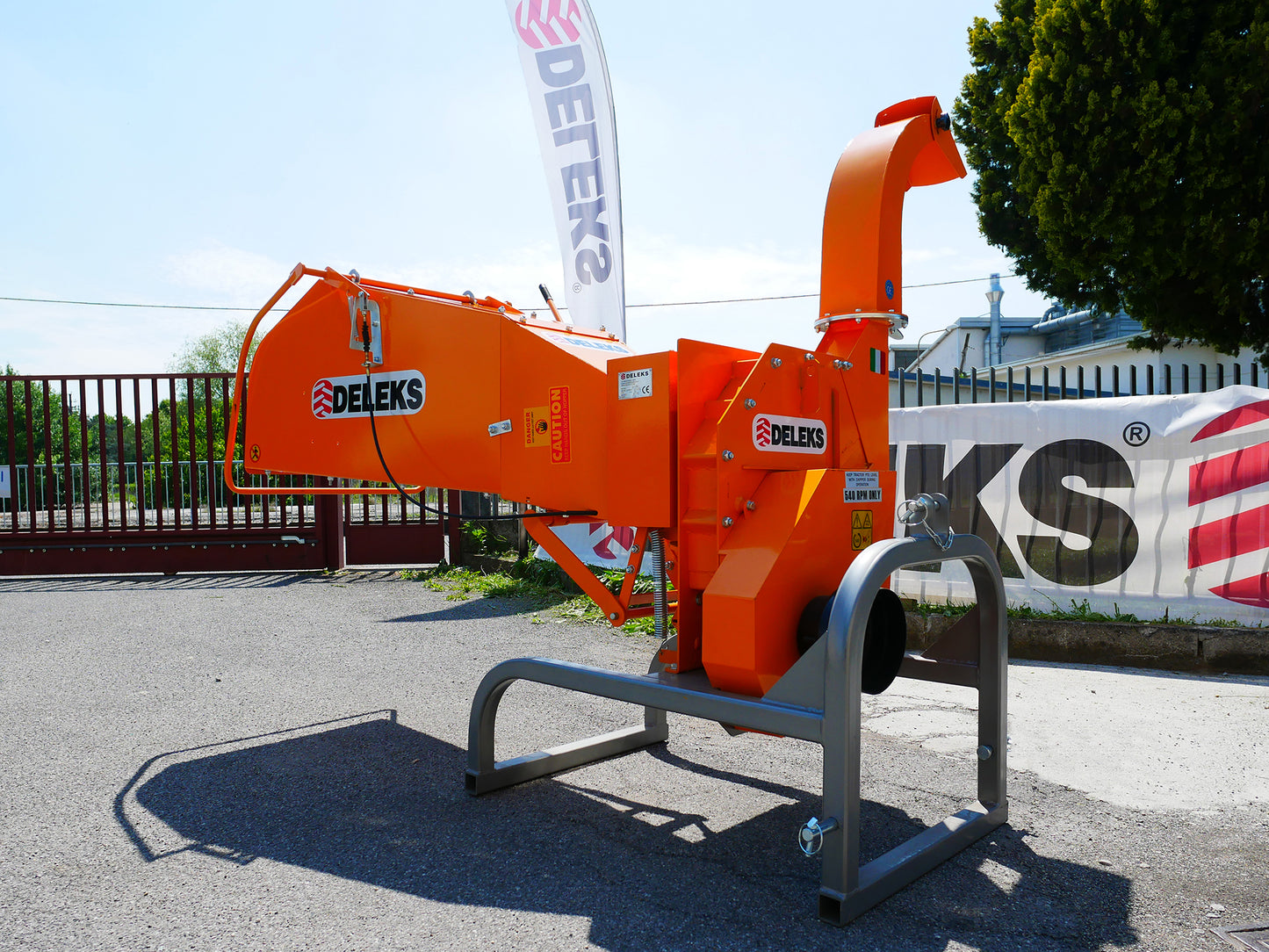

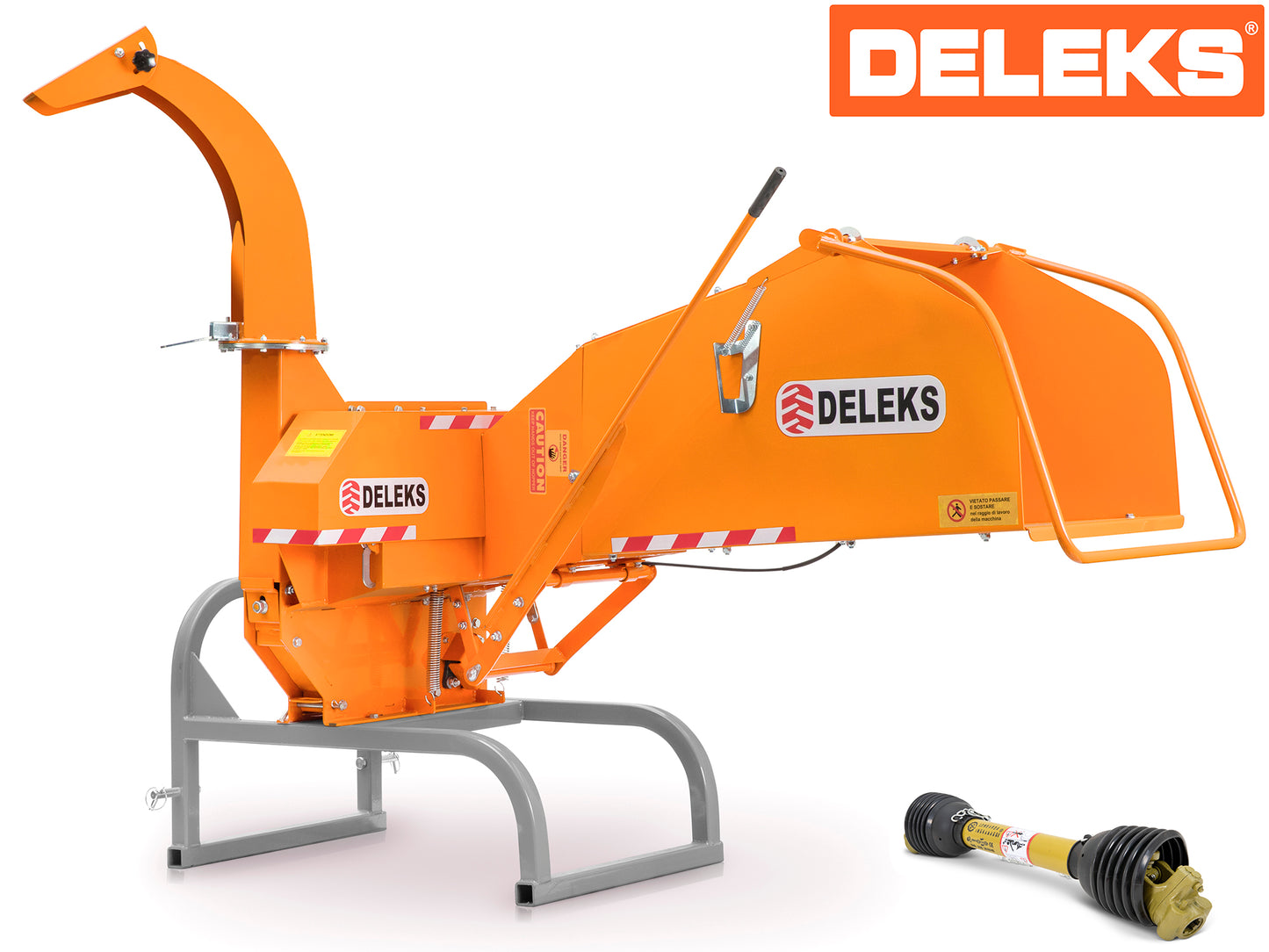

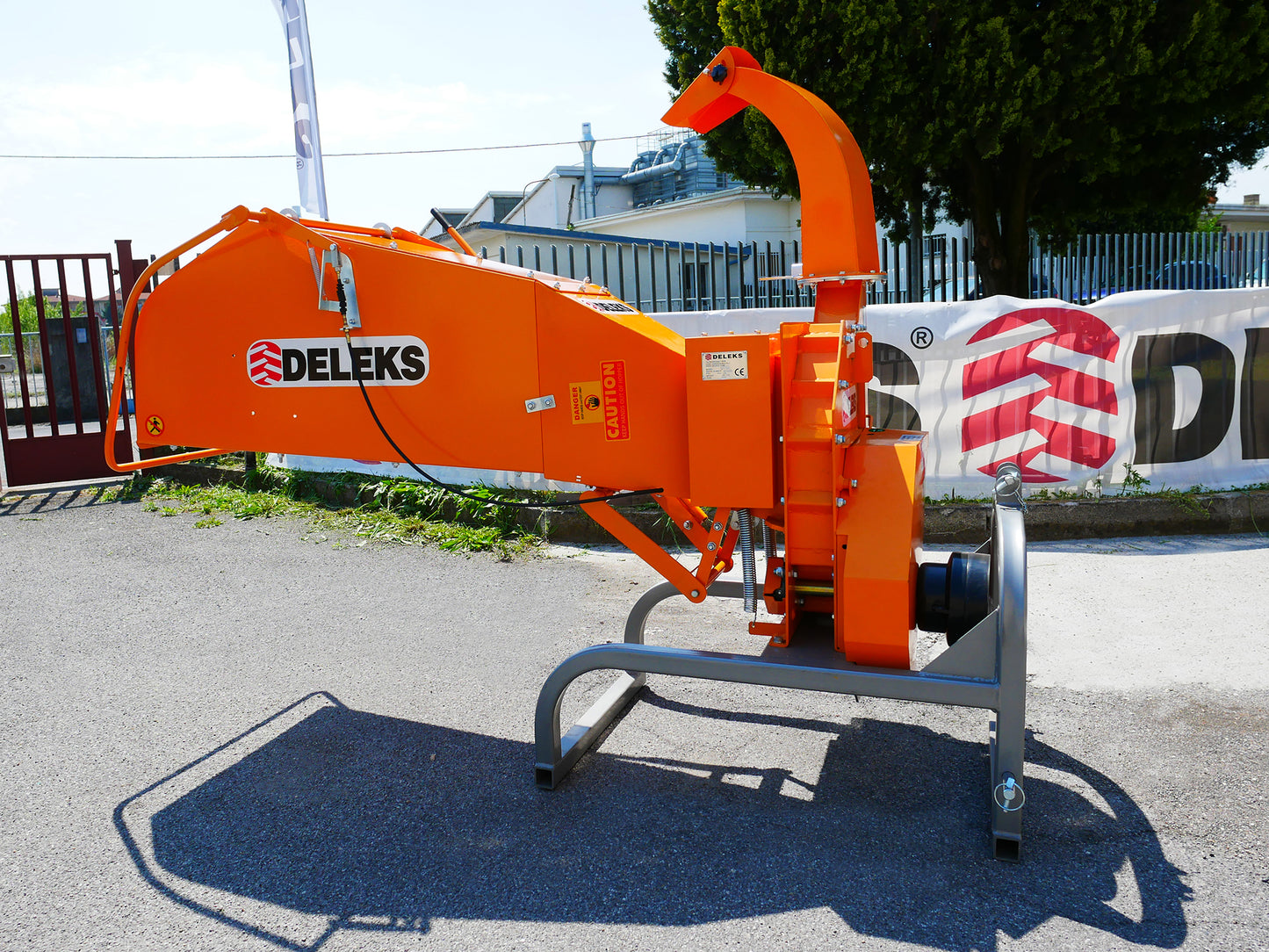

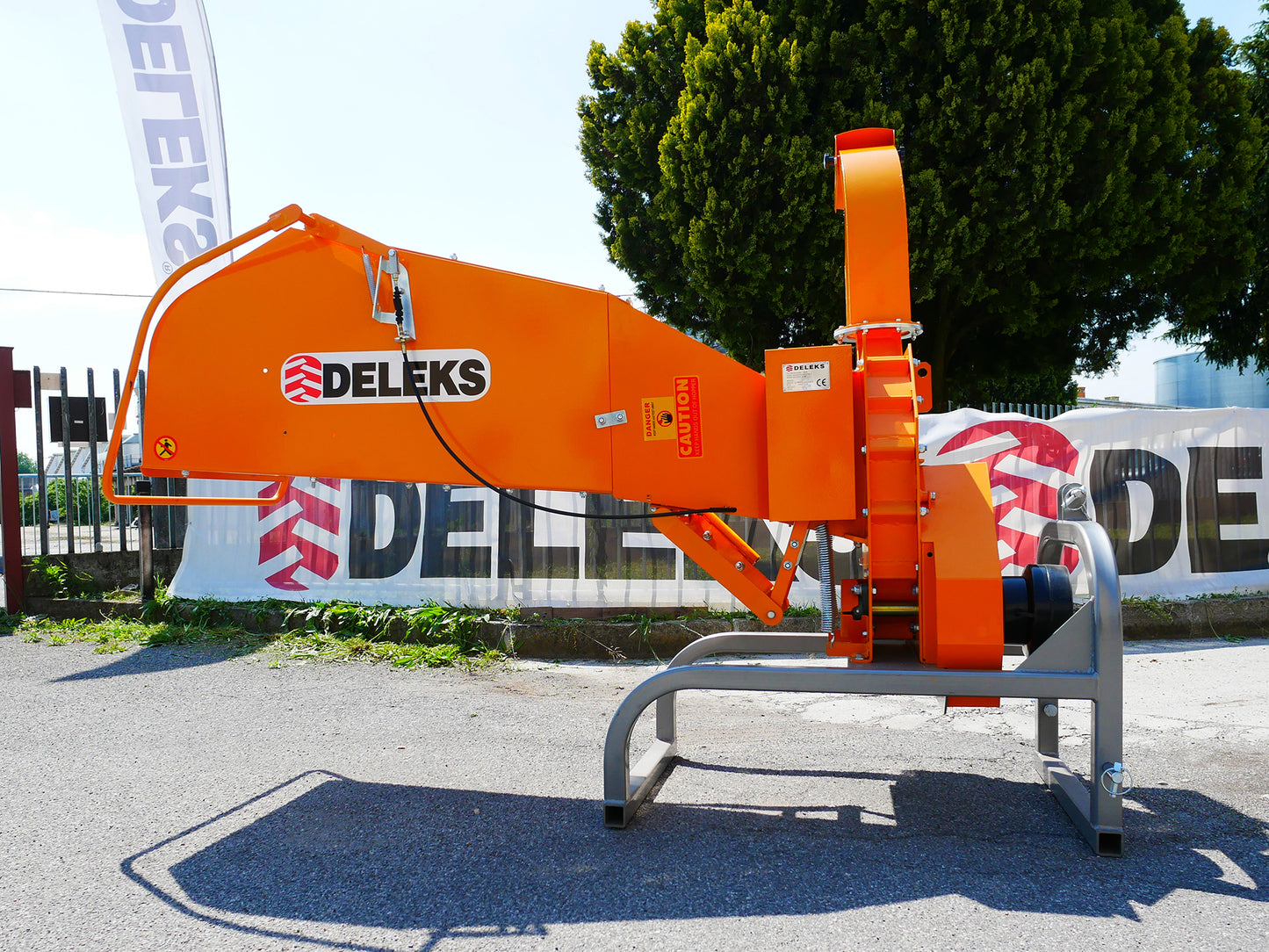

Deleks DK-1200 Professional Wood Chipper for tractors, PTO-driven, from Deleks of Italy.

We offer a range of chippers, either PTO-driven or petrol driven models.

This page features the PTO-driven DK-1200 Chipper for tractors 20-60hp.

The DK-1200 model woodchipper is disc-operated and has been designed to shred a wide variety of dry and green wood, up to a maximum diameter of 10 cm.

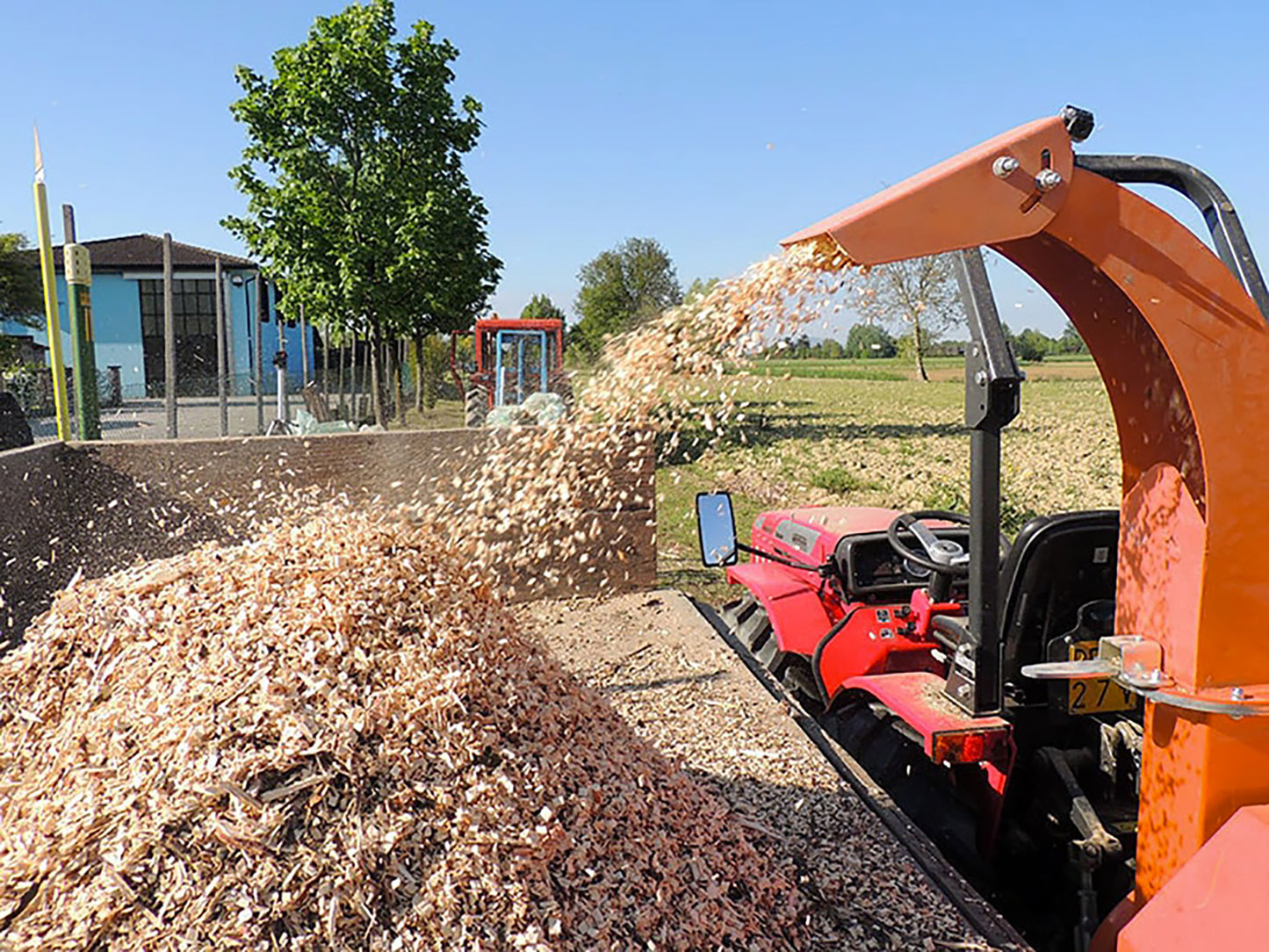

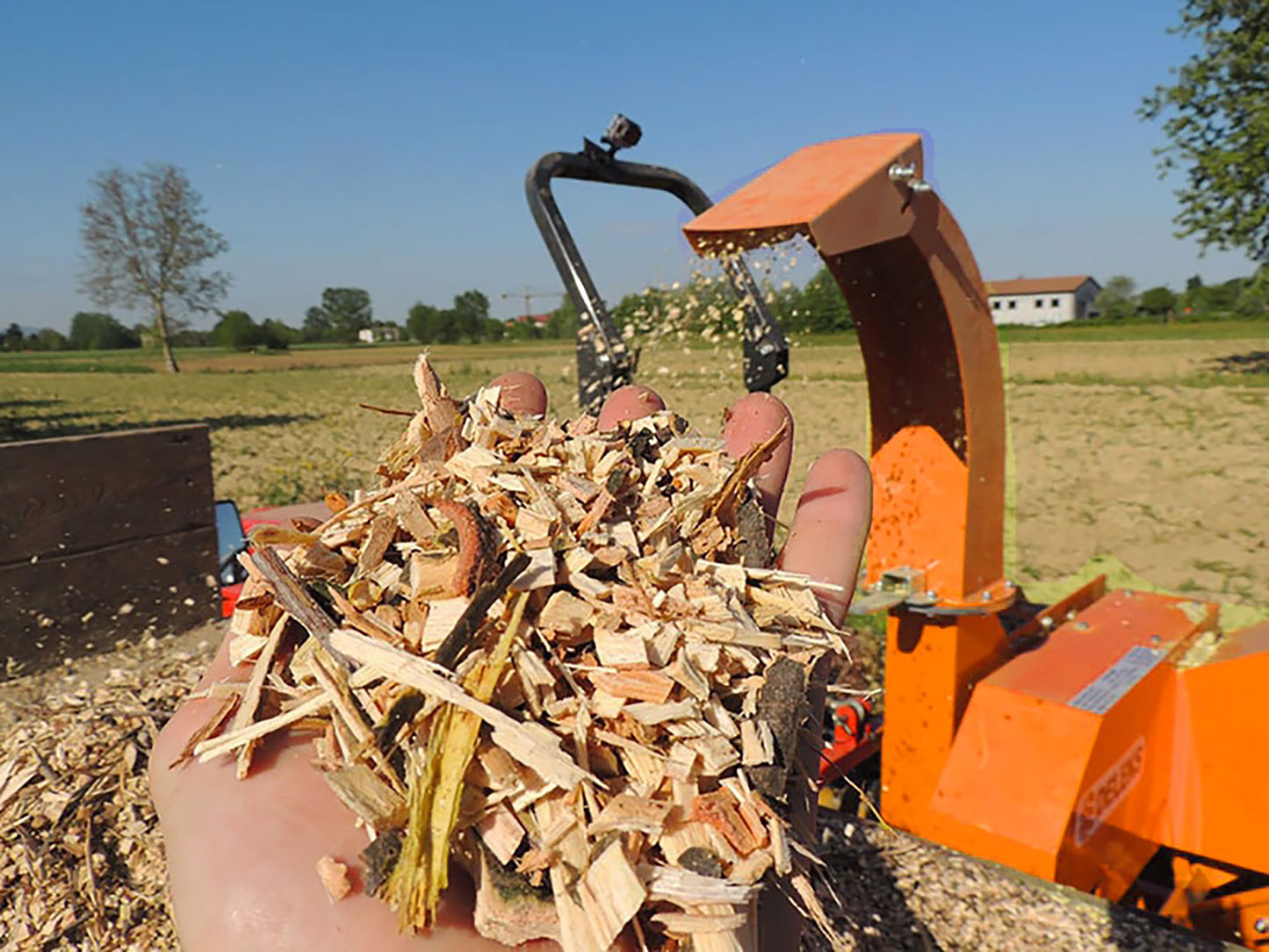

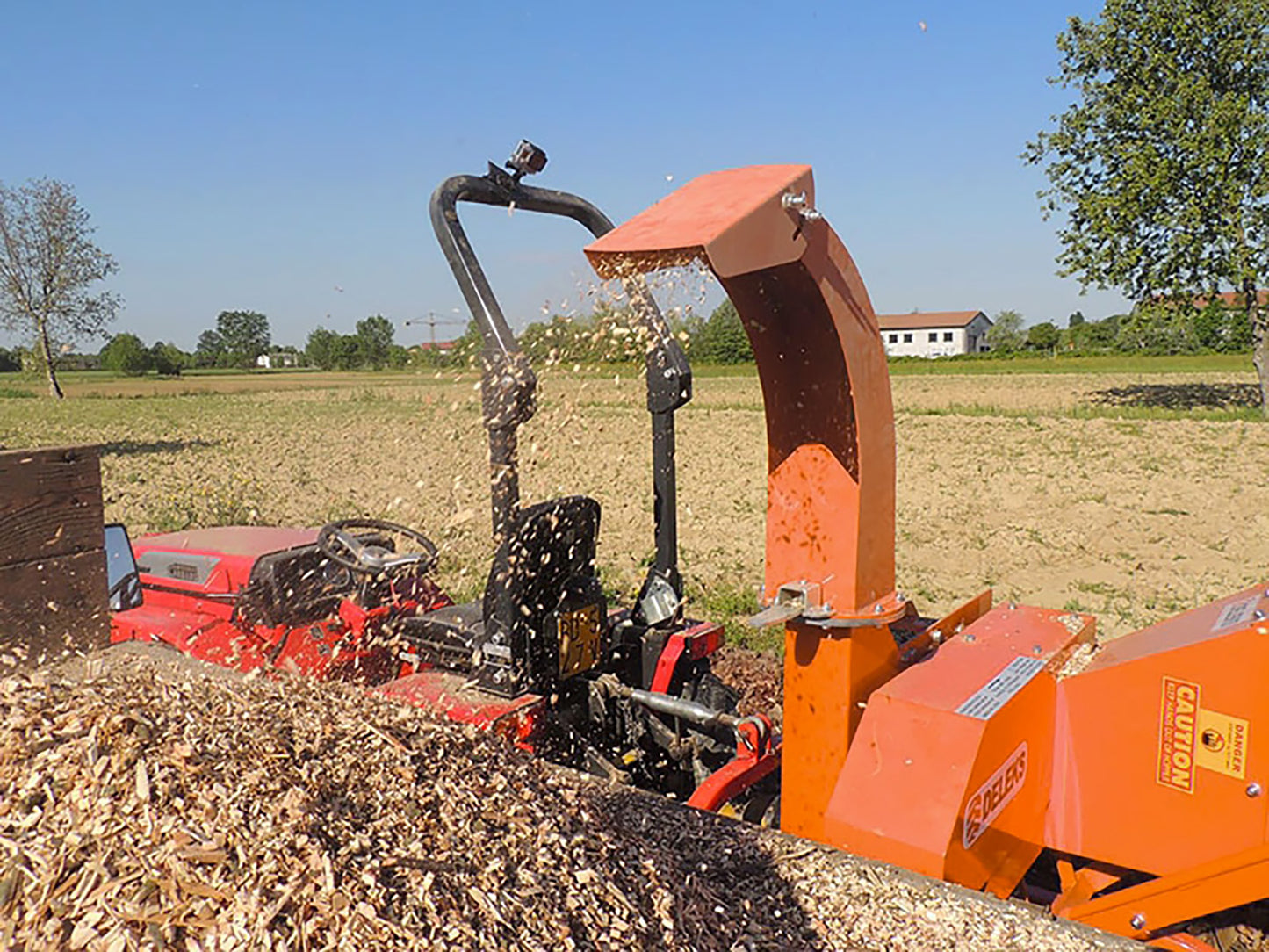

It produces woodchips measuring approximately 1/2 cm, which ensures optimal combustion when used in wood chip boilers and furnaces.

The transmission to the feed roller is belt-driven, allowing a constant input speed.

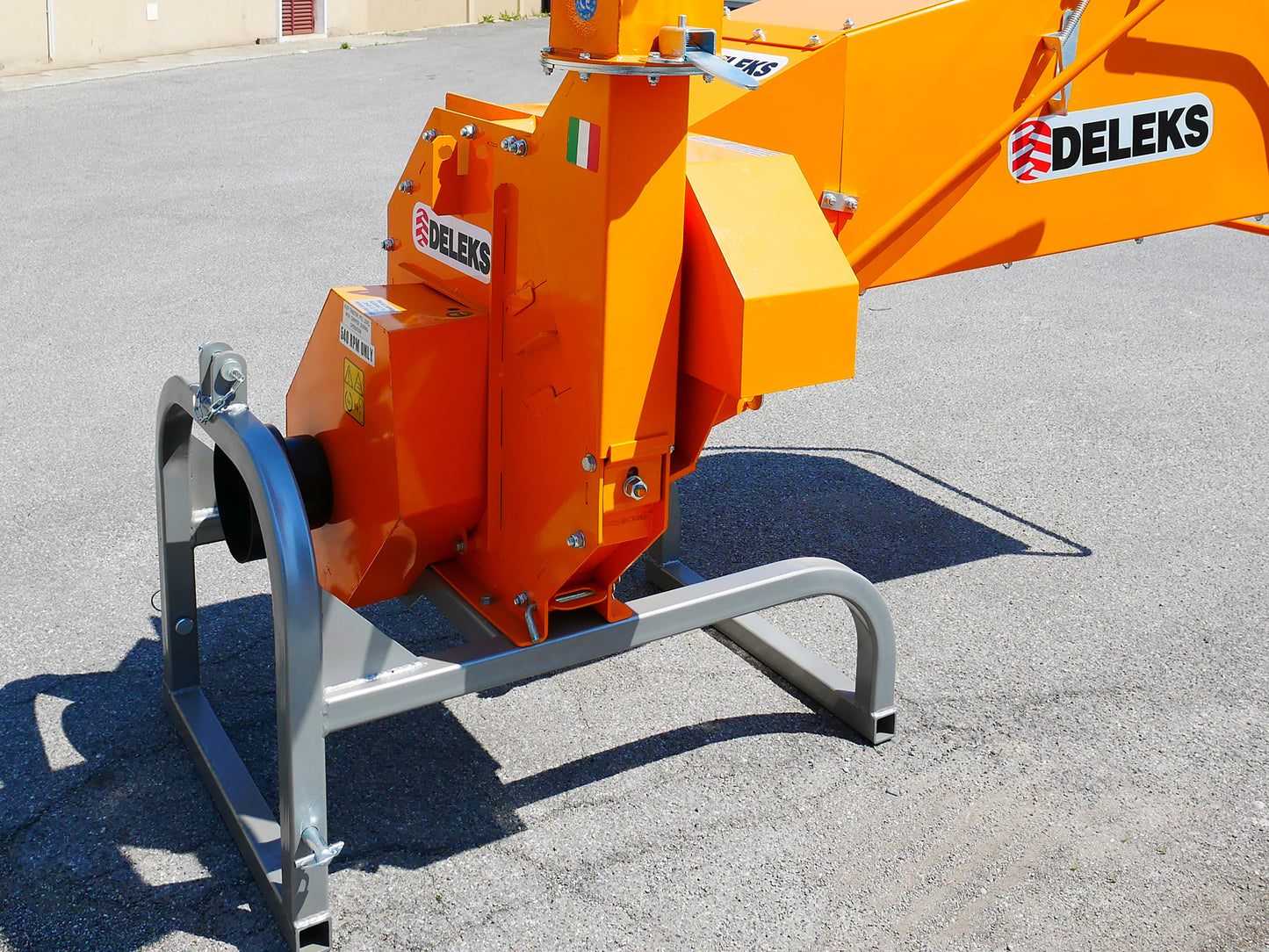

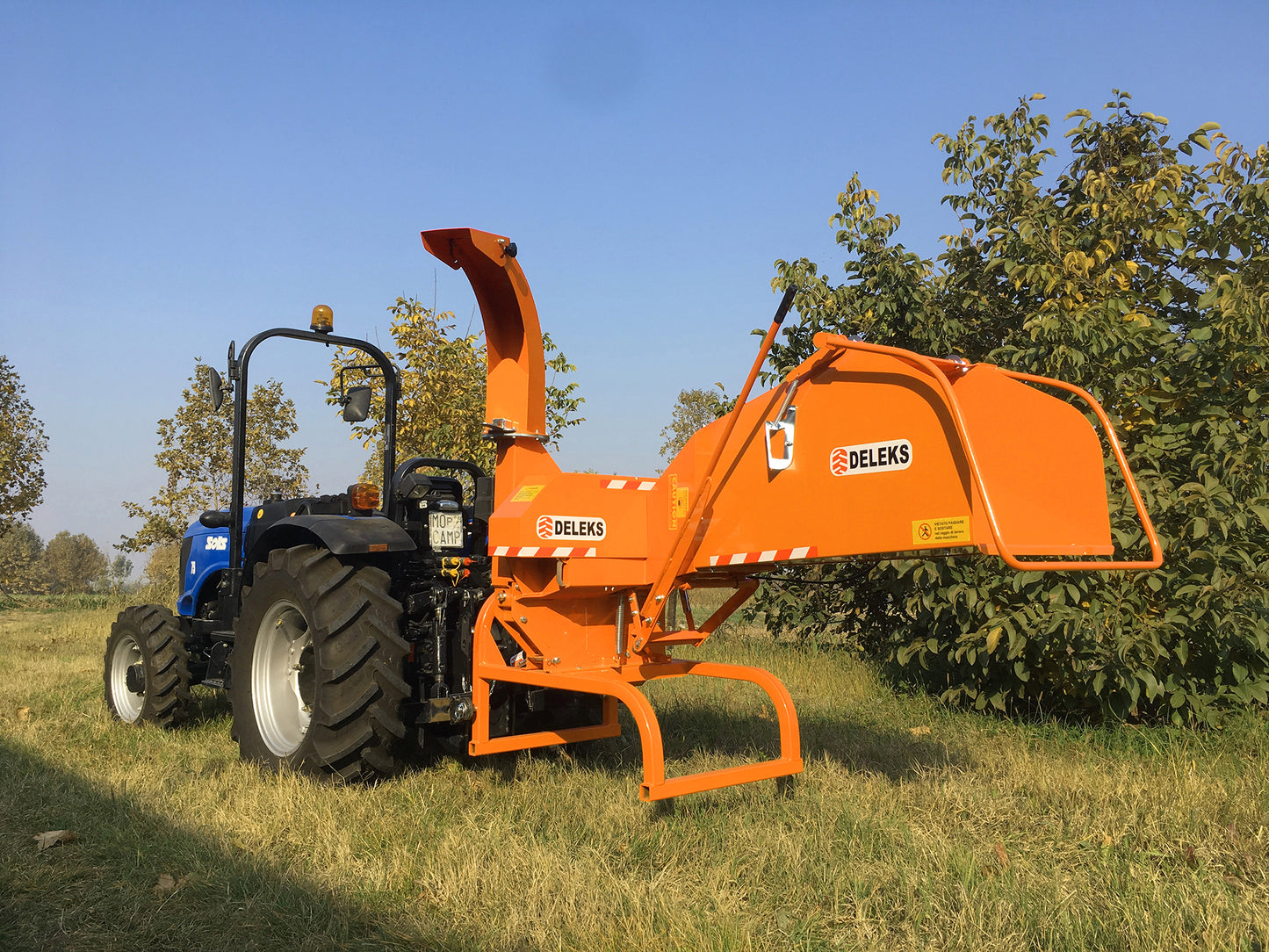

Compatible with all brands of Cat.1 tractors with 3-point linkage.

Features

Heavy steel disc with 2 reversible high-strength counter-blades
Drive roller to facilitate and speed up operation
Hood can be opened for maintenance and change of blades

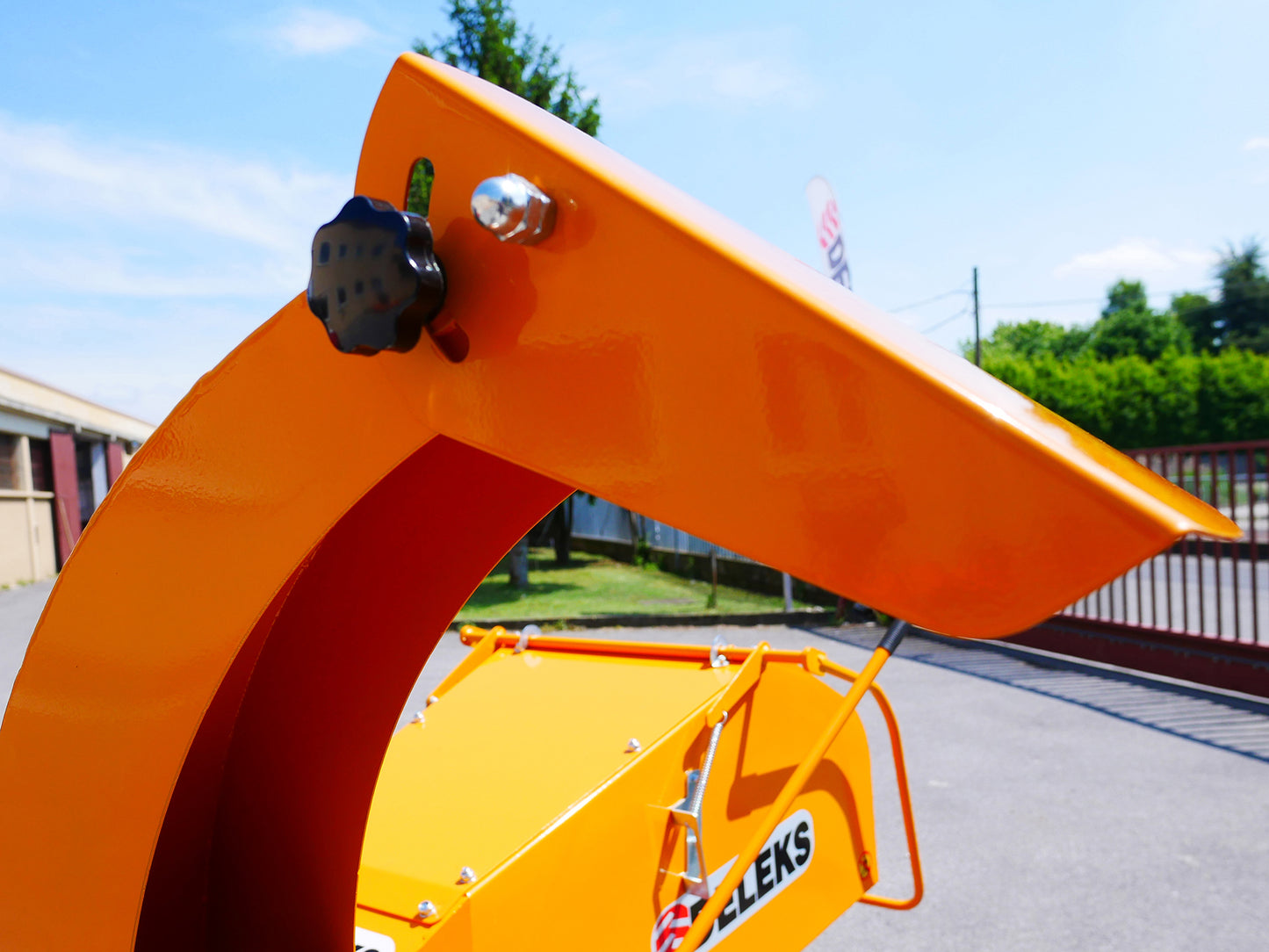

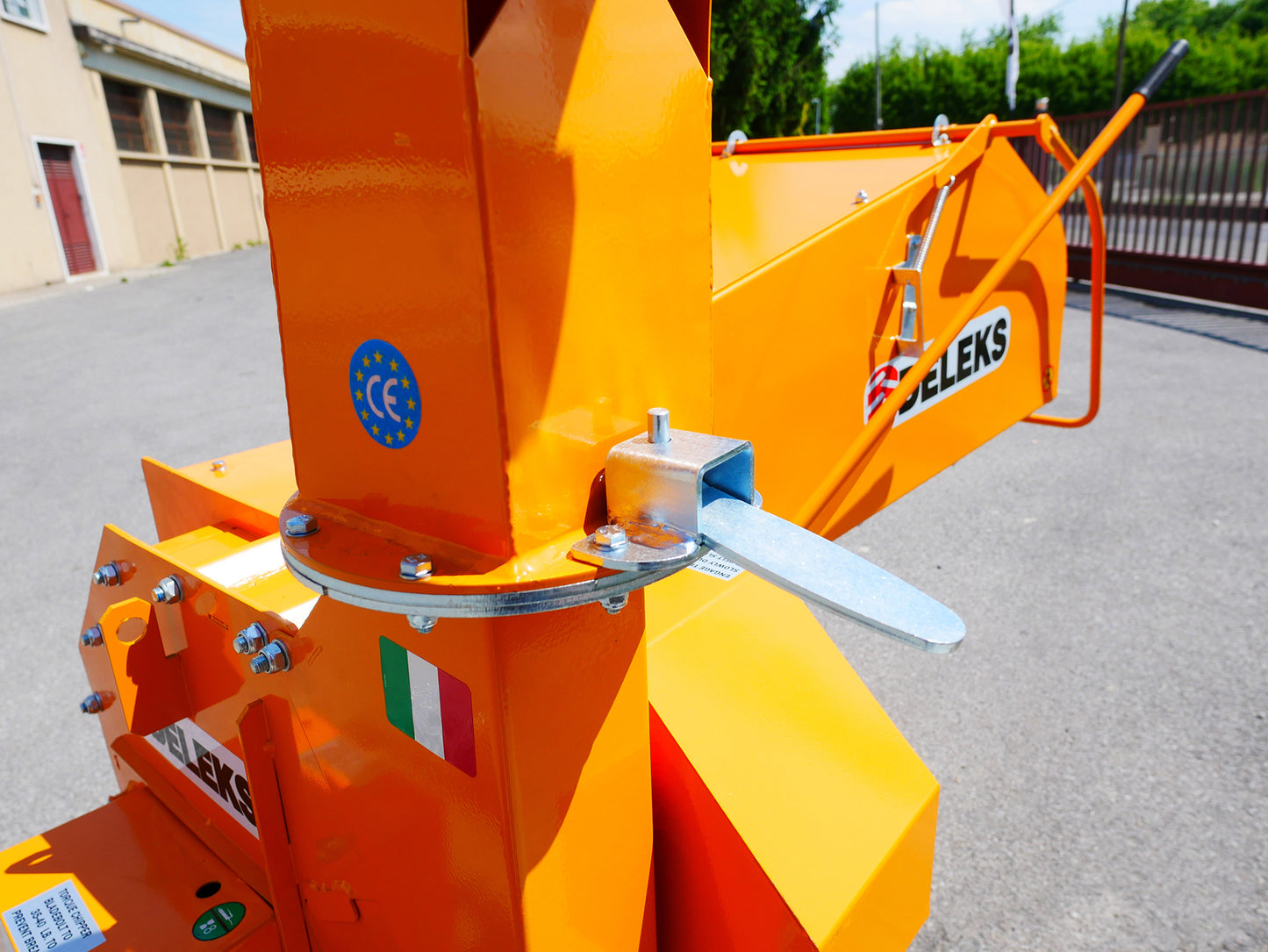

Output chute is 360 degrees positionable
High strength belts
Handle to immediately lock transmission.

 Specifications

DK-1200 PTO-driven Woodchipper
Cutting System Disc with 2 blades + 1 fixed blade
Maximum Cutting Diameter 80 mm - 100 mm
Chipped Material Size 5 mm - 15 mm
Working Efficiency 8-9 m3/h
Safety System Start and Stop Lever
Tractor Power Range 20 hp to 60 hp
3-Point Linkage Cat. 1
Spacing Between the 2 Lower Points 490 - 820 mm
Blade Sizes 230 x 55 x 10 mm
Weight of Blades 680 g

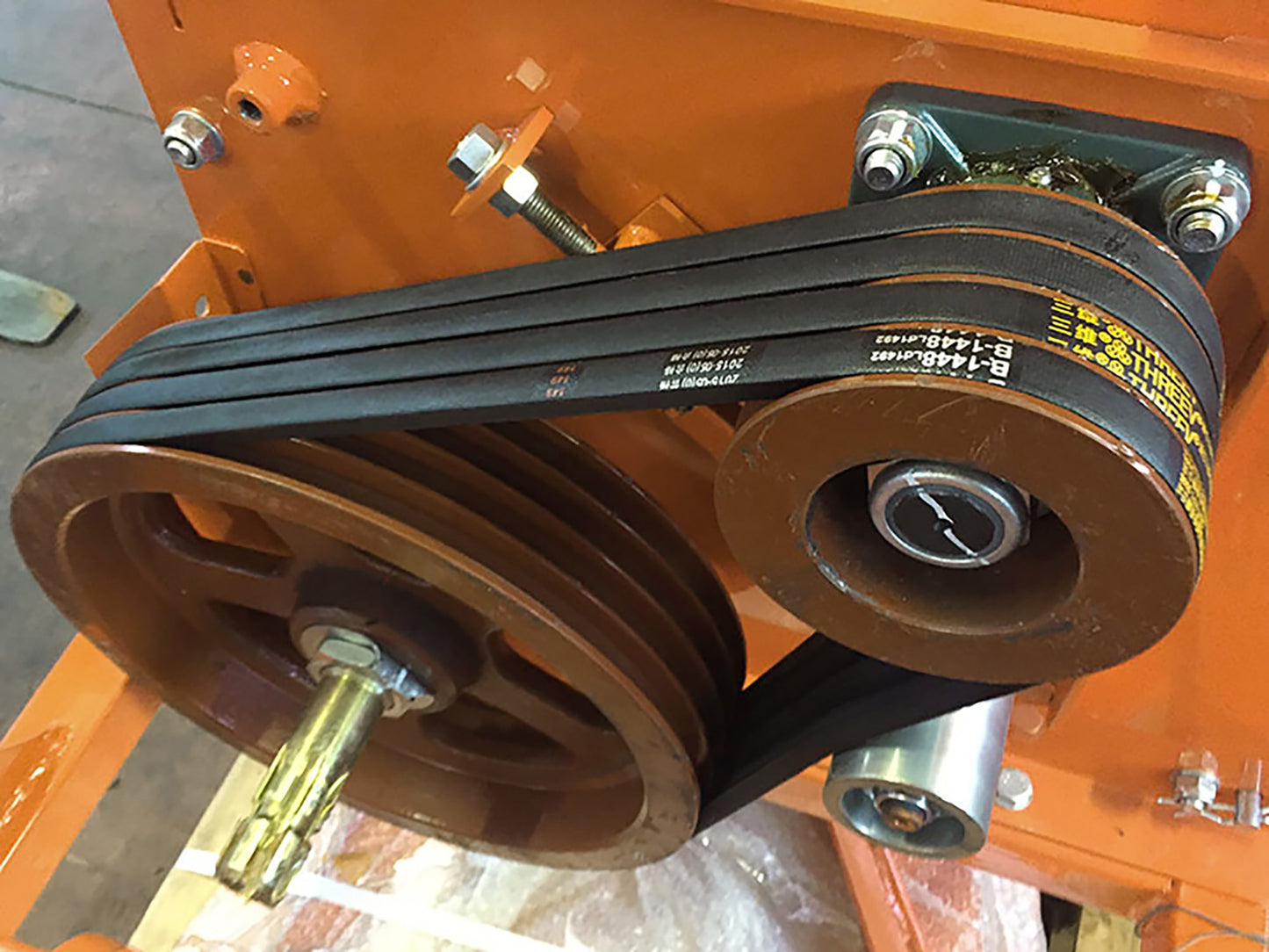

Transmission V-Belts x 4

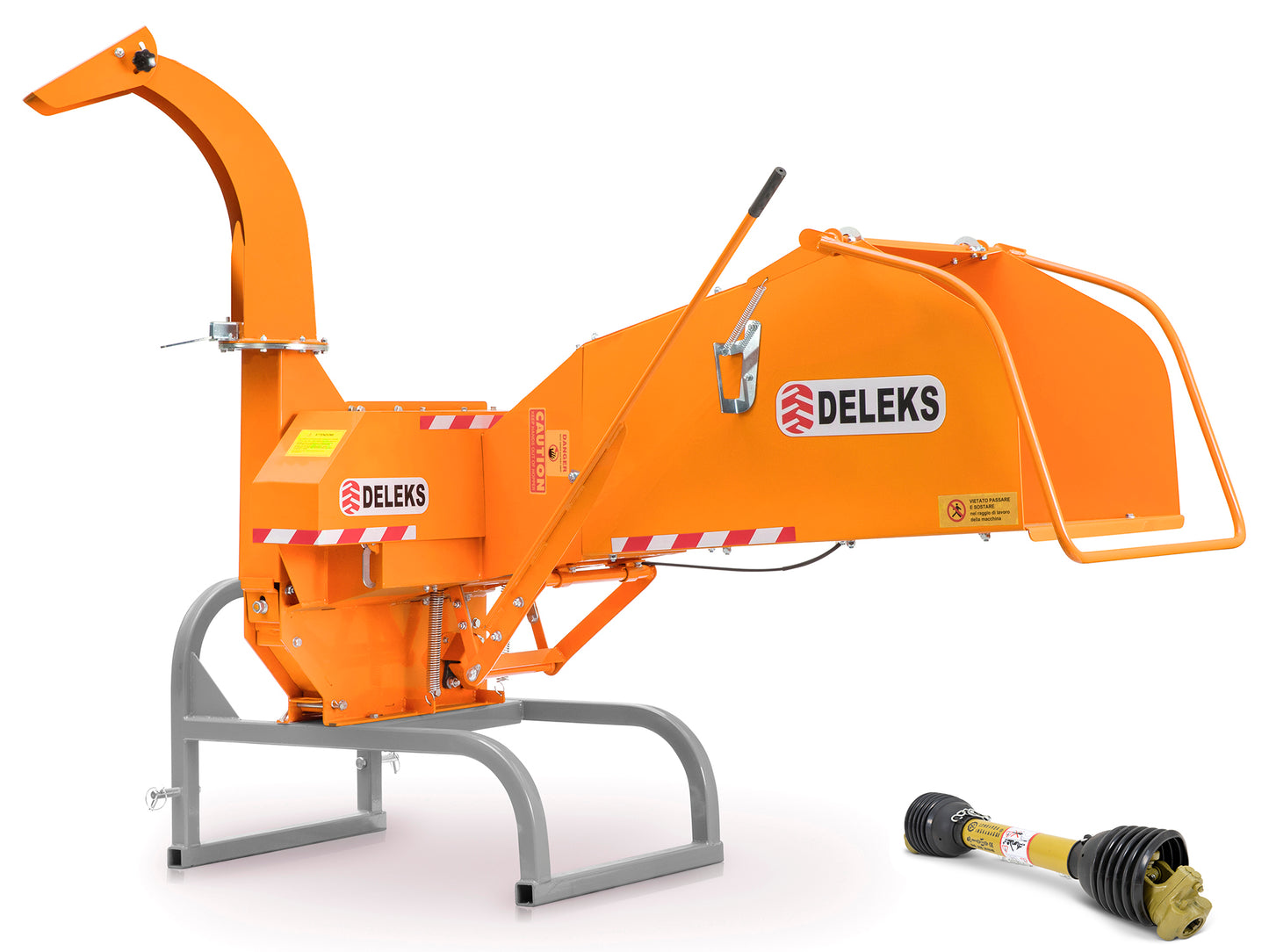

PTO Shaft CE 4 x 800 mm + Shear bolt
Distance Between PTO Attachment and Base 470 mm
PTO Speed 540 rpm
Roller Drive System Mechanical, 1 x V-Belt

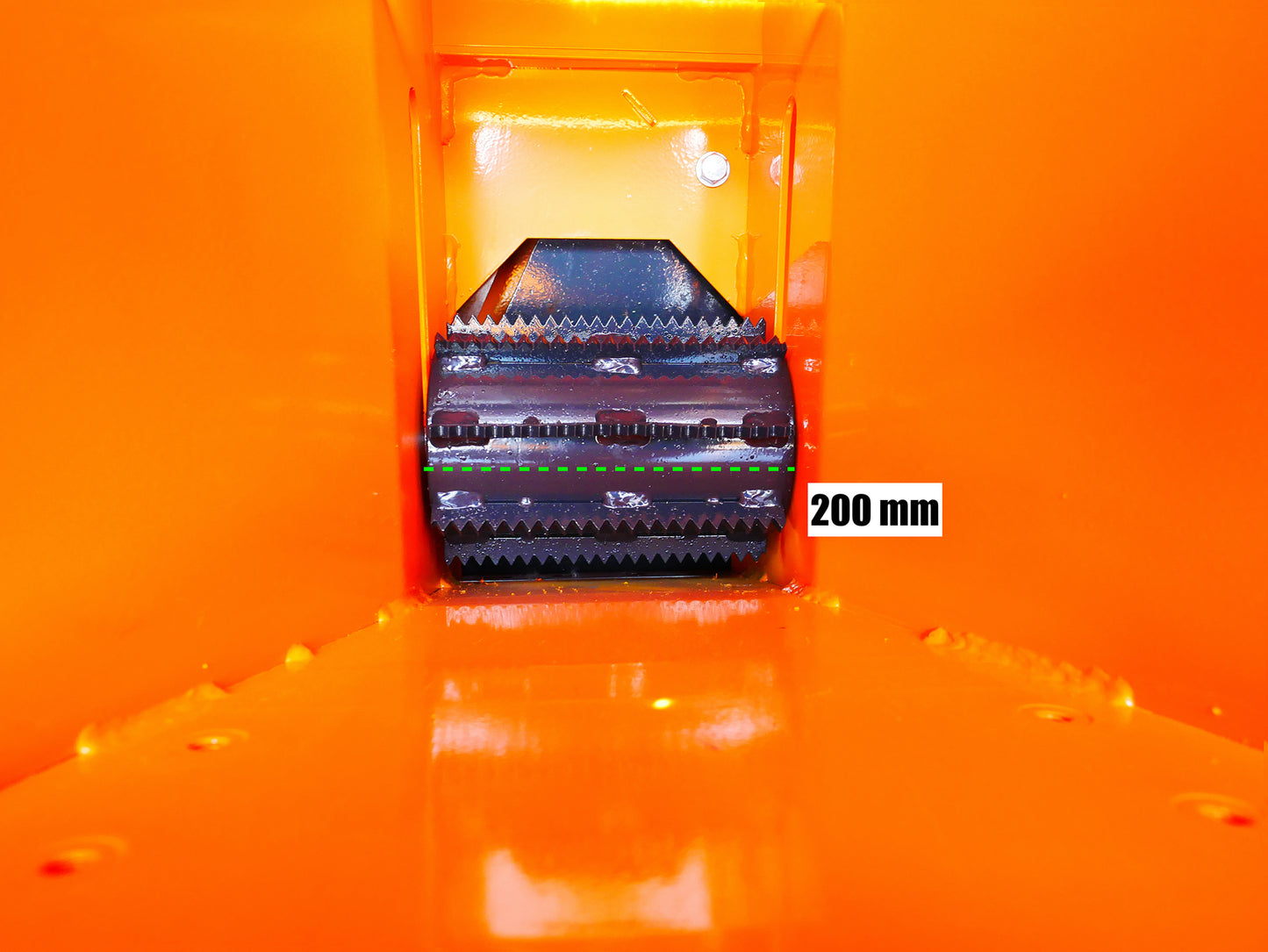

Roller Width 200 mm
Roller Diameter 150 mm
Operational Working Height 810 mm

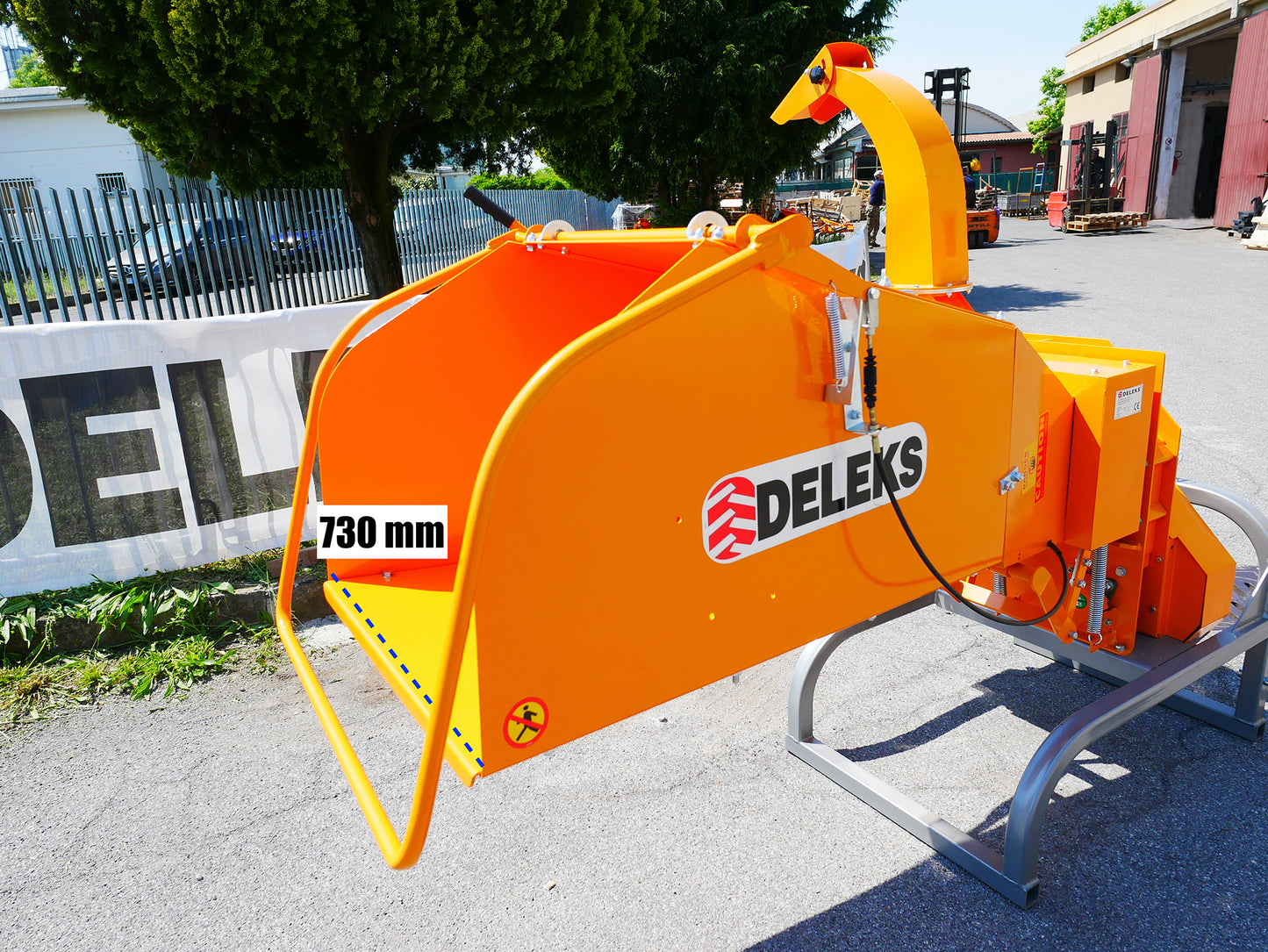

Feed Tray Working Width 670 mm
Outlet Tube Size 150 x 155 mm, 360 degrees
Outlet Height 1780 mm
Overall Width 1050 mm
Overall Length 2200 mm
Overall Height 1810 mm
Weight 337 kg
Packing Size 1200 x 1100 x 1200 mm
PRICE currently out of stock



All prices are quoted ex-works CTM and are subject to carriage / delivery charges and VAT at the current rate.

To order or for further information, please call us on 01748 886622 or complete our online enquiry form.
